I/O Module - DI & UI

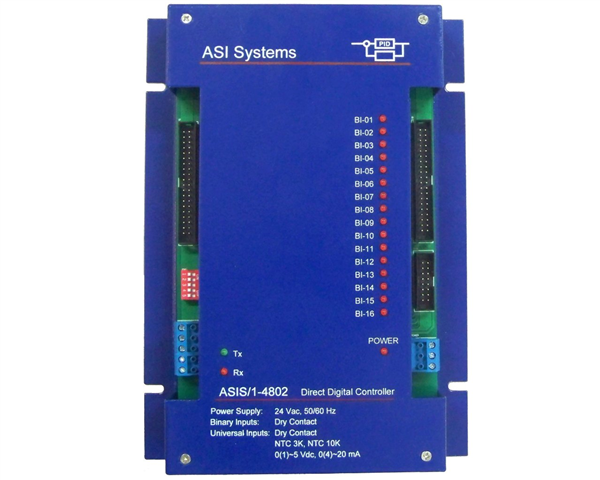

The ASIS/1-4802 I/O Module contains the most frequently used for heating, ventilating and air conditioning (HVAC) system applications and provided the control function for temperature, humidity, pressure and variable fan speed control.

The ASIS/1-4802 Input/Output Module is Programmable System Controller association-compliant devices, and can thus be used in Building Automation System (BAS).

加入詢價
  • 產品說明

  • Provided RS-485 communicating interface and Modbus protocol for system integration

  • 16 Binary Inputs

  • 16 Universal Inputs

  • 1 Red LED for indicate the power status

  • 1 Red and 1 Green LED for indicate the receive and transmit communications

  • 16 red LED for indicate the binary inputs

  • LCD Keypad and Touch-Screen Operator Panel accessible

  • The controller address setting by DIP switch combination in each controller

  • Provided Non-volatile memory (EEPROM) retains user settings during power loss

  • Using ASIS Expert configuration software for configured
